The HT-14 Keystone Waste Gooseneck Roll-Off Trailer is built for durability, efficiency, and heavy-duty waste hauling. Designed to meet ANSI container standards, this trailer delivers reliable performance for waste management, construction, and roll-off operations.

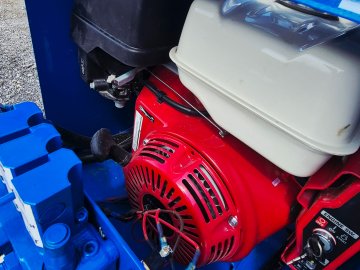

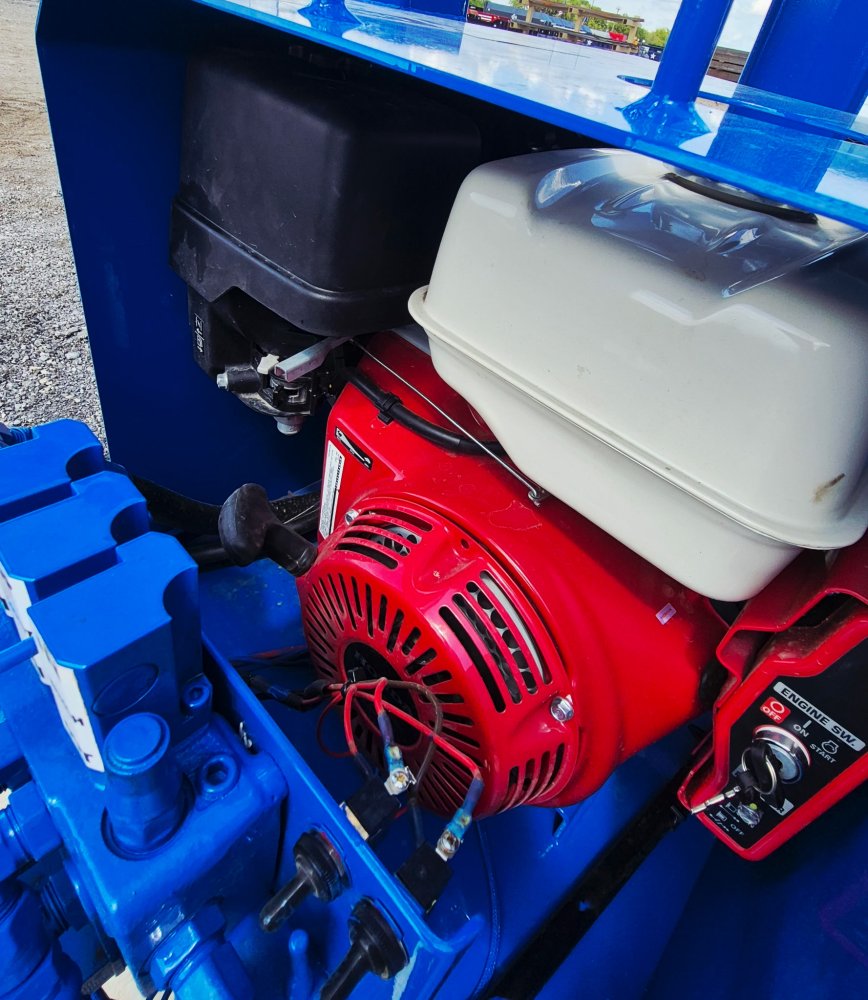

Powered by a 13 HP Honda engine, the hydraulic system produces 8.3 GPM at 1500 PSI, providing smooth and dependable operation. The electric-over-hydraulic valve system with remote control allows operators to easily control all functions for safe and efficient loading and unloading.

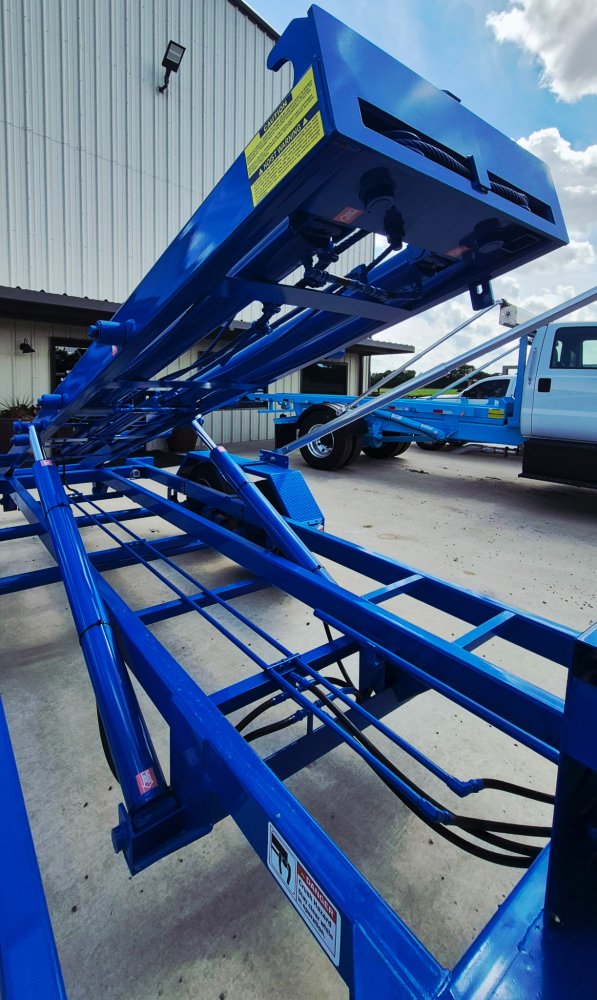

The trailer features four interchangeable 4” x 48” lift/winch cylinders, a 5/8” hoist cable, and five 8” sheaves for optimal cable routing. With a 49° dump angle, containers unload quickly and efficiently.
Built with strength and reliability in mind, the HT-14 includes two 7,000 lb Dexter spring axles with a 3” beam, 8K spring hangers, and 12” x 2” electric brakes for dependable towing and stopping power. It rides on 16” 8-lug steel wheels with 235/85/R16 14-ply tires, ensuring stability even under heavy loads.

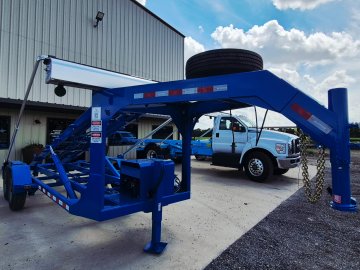

Additional features include 3” bronze bearing outside rollers, a 30,000 lb 2-5/16” pin-style gooseneck coupler, a 12,000 lb manual jack, and a spare tire included.
Backed by a 3-year structural warranty, this trailer is designed to handle the demands of daily roll-off operations.
Specifications:
-
GVWR: 14,000 lbs
-
Axles: (2) 7,000 lb Dexter spring axles
-
Hydraulics: 13 HP Honda engine – 8.3 GPM @ 1500 PSI
-
Dump Angle: 49°
-
Coupler: 2-5/16” Gooseneck, 30,000 lb pin style
-
Tires: 235/85/R16, 14-ply on 16” 8-lug steel rims
-
Maximum Dumpster Size: 14’ (20 yard)
Built tough for the waste industry, the HT-14 Keystone is a dependable solution for hauling and dumping roll-off containers.
